Purpose and scope of application:

It is suitable for the protection and management of wires and cables of AC 1000V and/or DC 1500V and below when the normal operation does not exceed -5℃~60℃.

Executive standard: ICE61386、AS/NZS61386、 GB/T20041

Performance characteristics:

1. Good physical and chemical stability, and excellent corrosion resistance;

2. It has excellent low temperature resistance and good impact performance;

3. Strong bending performance, good flexibility, and good resistance to terrain settlement;

4. It can be connected by hot melt, and the system has excellent sealing performance;

5. It can be coiled to meet the requirement of fewer joints for long-distance laying

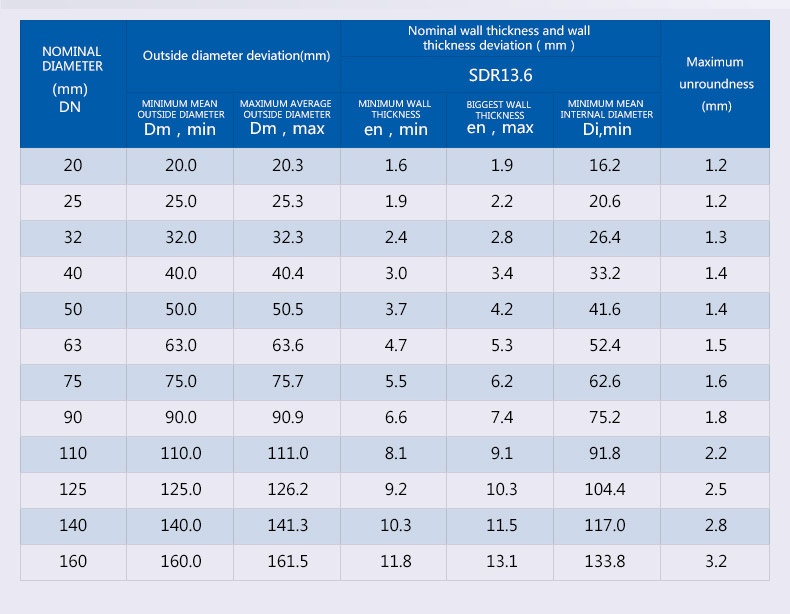

The nominal outer diameter of the pipe and the corresponding minimum wall thickness and size deviation, maximum out-of-roundness
